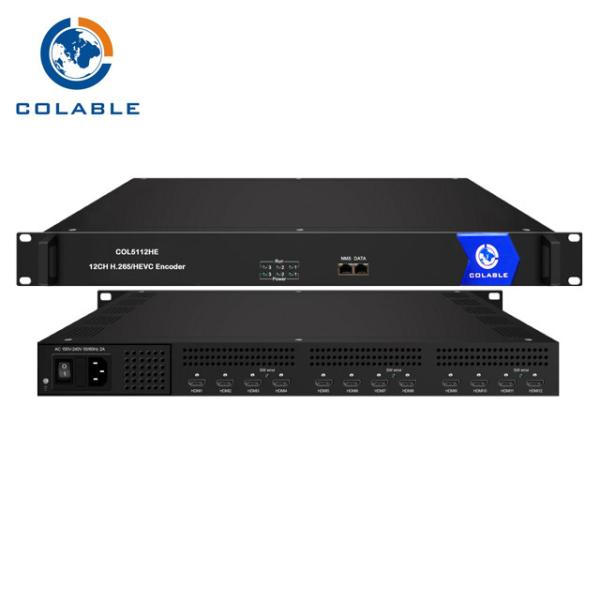

H 265 HEVC Video Encoder , 4 CH 8 CH 12 CH HDMI 4k Hevc Encoder COL5112HE

  • 1
  • 2

Brand Name : Colable

Model Number : COL5112HE

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union etc

Supply Ability : 500sets per Month

Delivery Time : 2-5 working days

Packaging Details : Standard Export Carton with foam

Product name : H.264 H.265 IPTV 4K Encoder

Input : 4 Ch HDMI per module (max 3 modules)

Output : 1*MPTS+4*SPTS per module (max 3 moddules)

IP Protocol : UDP/RTP/RTSP, 1000M/100M (unicast/multicast)

Resolution : Max 3840×2160_30P

Vdieo Encoding : H.265/HEVC (H.264/AVC is optional)

Audio Encoding : MPEG-1 Layer-2, AAC

Applications : Digital TV Headend, CATV, IPTV, DTT, DSTV etc

Note : 4K H.265 only support 2 *HDMI as per module

Contact Now

Digital Module Model: COL5112HE

4 CH 8 CH 12 CH HDMI H.265 H.265 HEVC IPTV 4K Encoder


Outline

COL5112HE 12CH H.265/HEVC Encoder supports up to 3 H.265/HEVC encoding modules with 4 HDMI interfaces on each module. With B frame (IBBP) GOP structure and advanced compressing algorithm, this device enhances picture quality and provides ultra low bit rate to save 75% bandwidth compared with H.264/AVC and it supports up to 2160P 30Hz resolution.
It also has 1 data port (1000M/100M) for IP output (3MPTS and 12 SPTS) over UDP/RTP/RTSP protocol and 1 Network Management port to manage the 3 modules individually through 3 different IP addresses.
In conclusion, its high performance and cost-effective design make this device widely used in CATV digital head-end, business application, IPTV/OTT system, etc.


Features

  • Support H.265/HEVC and H.264/AVC video encoding
  • Each module support 4 HDMI input with H.265 encoding, up to 3 modules for 1U device
  • Up to 2160P 30Hz resolution (Each module 2 HDMI input)
  • Support HDCP 1.4 and HDCP 1.4
  • Support B frame (IBBP) GOP structure
  • Ultra low bit rate encoding, save 75% bandwidth
  • Advanced compressing algorithm, enhance picture quality
  • Support IP (1000M/100M) Output with 3MPTS and 12 SPTS over UDP/RTP/RTSP protocol
  • Update device through web based NMS port
  • Support LCD / keyboard operating(optional), and network management (web)



Specifications

Input
12×HDMI input (1.4), HDCP 1.4
Video Encoding
Encoding Format
H.265/HEVC (H.264/AVC is optional)
Resolution
3840×2160_30P, 3840×2160_29.97P
(only for H.265/HEVC encoding, and supports two channels per module)
1920×1080_60P,1920×1080_59.94P,1920×1080_50P,
1280×720_60P, 1280×720_59.94P, 1280×720_50P
Chroma
4:2:0
Bitrate
0.5Mbps~20Mbps (each channel)
Rate Control
CBR/VBR
GOP Structure
IBBP, IPPP
Advanced Pretreatment
De-interlacing, Noise Reduction, Sharpening
Audio Encoding
Encoding Format
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2
Sampling rate
48KHz
Bit-rate
48Kbps~384Kbps (each channel)
Audio Gain
0~255
Stream output
3 MPTS and 12 SPTS (per module) output over UDP/RTP/RTSP,
1000M/100M Base-T Ethernet interface (unicast/ multicast)
IP null packet filter
System
Web based management
Chinese-English control interface
Ethernet software upgrade
Miscellaneous
Dimension (WxLxH)
482mm×328mm×44mm
Approx weight
5kg
Temperature
0~45℃(work), -20~80℃(Storage)
Power
AC 100V-220V±10%, 50/60Hz




Principle Chart

H 265 HEVC Video Encoder , 4 CH 8 CH 12 CH HDMI 4k Hevc Encoder COL5112HE


Digital CATV & IPTV System


H 265 HEVC Video Encoder , 4 CH 8 CH 12 CH HDMI 4k Hevc Encoder COL5112HE

Packing & Delivery

Packing

With some accessories and User Manual. One unit for one carton, Export Carton with foam

Delivery

Sample or small quantity, we suggest Express, such as Fedex, UPS, DHL, EMS etc.
If bulk order, we suggest you air transport or sea.

Remark: we can check freight for your reference, also support cash on delivery (freight) if you have courier account.
